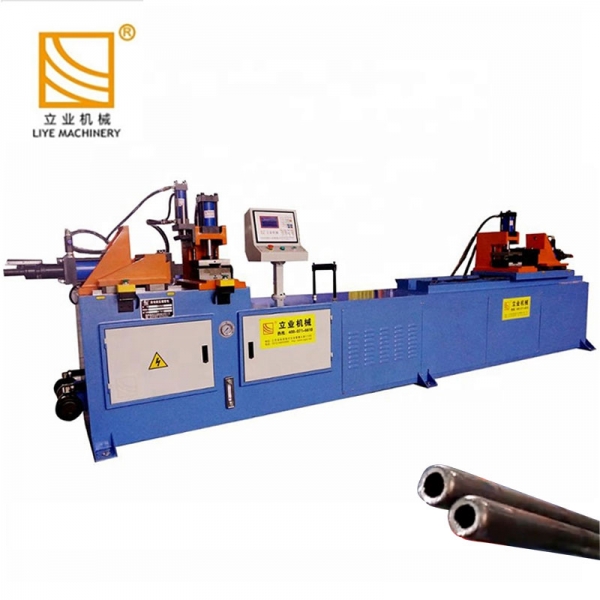

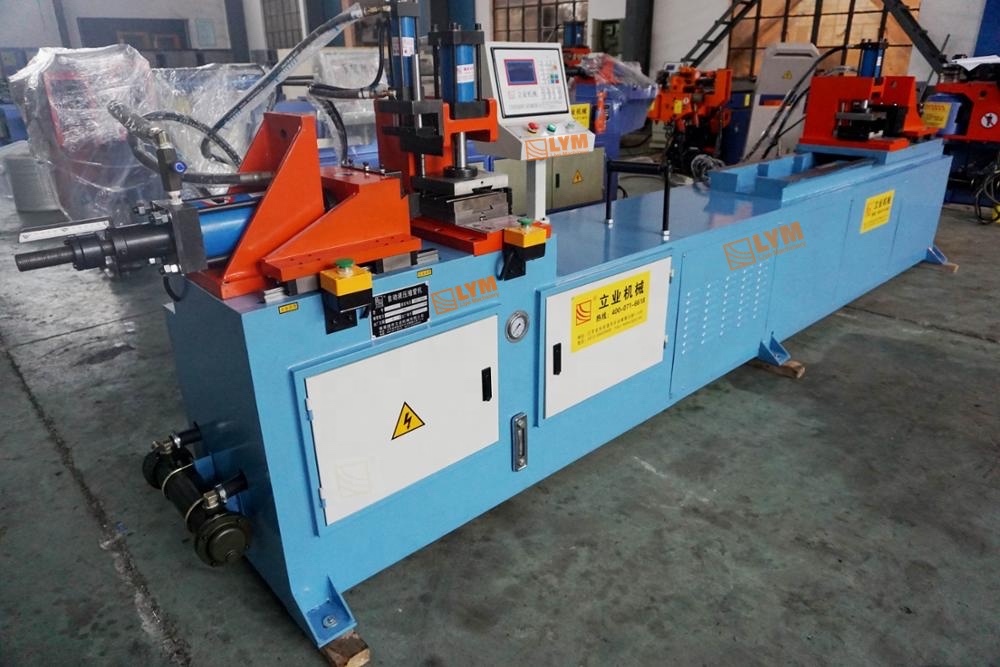

DOUBLE ENDS TUBE FORMING MACHINE(LENGTHEN TYPE)


  • LYM TEF Tube end former series go up to 168 mm in size and incorporate hydraulic operation and touch screen control. They can be integrated with 1 or 2 operating stations to process operations on tube ends and are suitable for both straight and bent tubul
Direct supply from the manufacturer
Order phone:+86-13812981723
E-mail: liye@liyemachine.com

Detail




The LYM TEF Tube End Former Series is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. These machines are different than conventional end forming machines, due to their low setup, high flexibility, superior precision, and compact design.

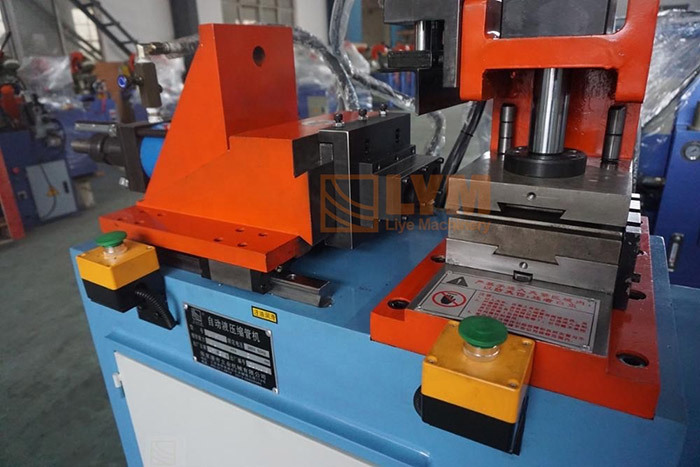

• LYM tube end forming machine is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.

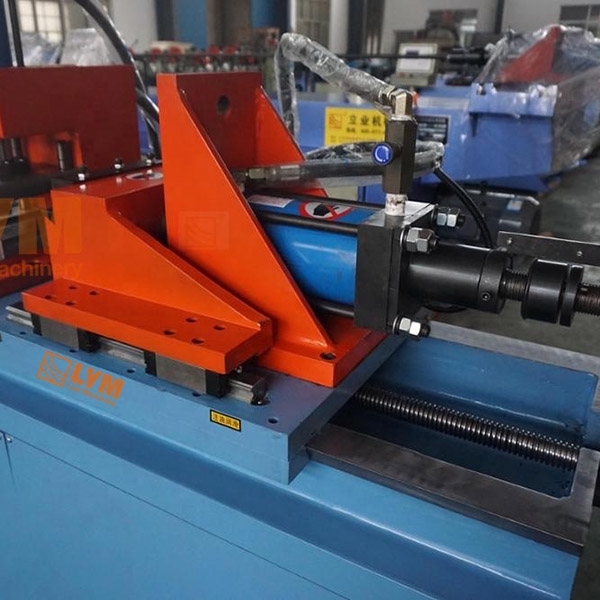

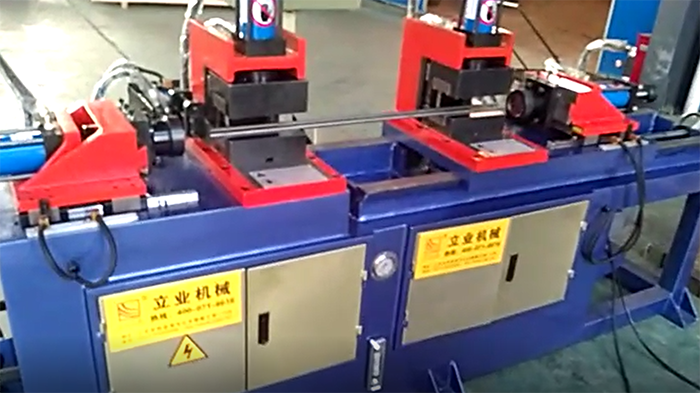

• With double ends CNC arrangement, pipe end forming machine can shrink the tube for two times simultaneously. Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.

• Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.

• The distance between two ends can be adjusted according to the length of tube. (limited to the double-end forming machine only)

• Single-end clamping or double-end clamping can be carried out according to length of the tube.

• The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.

Description

Brand Name:

LYM

Model Number:

SG60CNC-L/SG80CNC-L/SG100CN-L/SG120CNC-L/SG168CNC-L

Type

Double ends forming(Lengthen Type)

Certification:

CE/SGS/TUV/ISO

Place of Origin:

China

Application

Pipes ,various materials such as steel, stainless

Packaging Details

Packed in stretch film firstly,and then reinforced with plywood for outer packing



Tube diameter up to 168mm in size, double ends forming
Standard accessories

• One pair of mould (shrinkage mould and clamping mould)

• One set of common tools

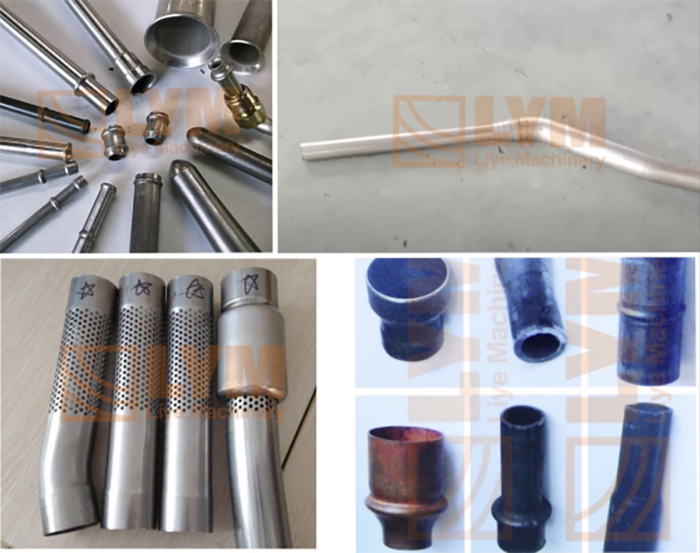

Part of the sample tube

LYM Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others.
